Description

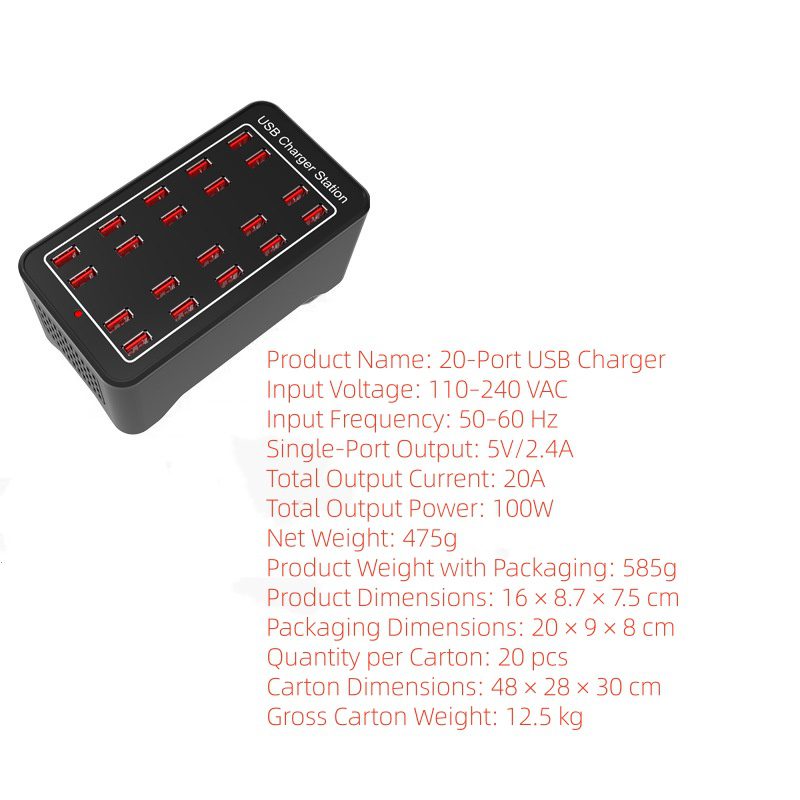

Multi-Port USB Charging Station

The PHONIX 20-Port 100W USB Charger is a high-density multi-port USB charging station designed to charge multiple USB-powered devices from a single AC power source.

With 20 USB-A charging ports and up to 100W total output power, this multi-port USB charger provides a convenient and space-saving charging solution for environments where multiple devices need to be charged simultaneously.

The charger supports 100–240VAC universal AC input and is suitable for offices, commercial environments, retail locations, service centres, charging stations, educational facilities and other multi-device charging applications.

PHONIX also provides OEM and ODM USB charger manufacturing services, including electrical specifications, enclosure design, product branding, labelling and packaging customisation.

---

Product Specifications

Item	Specification
Product Type	20-Port USB Charger / Multi-Port USB Charging Station
Brand	PHONIX
Number of USB Ports	20 Ports
Input Voltage	100–240 VAC
Input Frequency	50–60 Hz
Total Output Power	100W
Total Output Current	20A max.
USB Output	5V / 2.4A max. per port
Output Connector	USB-A
Output Type	Multi-Port DC USB Charging
Enclosure Material	ABS
Installation	Desktop
Product Dimensions	160 × 87 × 75 mm
Net Weight	Approx. 475 g
Weight with Packaging	Approx. 585 g
Packaging Dimensions	200 × 90 × 80 mm
Quantity per Carton	20 pcs
Carton Dimensions	480 × 280 × 300 mm
Gross Carton Weight	Approx. 12.5 kg
OEM Service	Available
ODM Service	Available
Customisation	Available
Warranty	3 Years

Output Rating

Each USB-A port is rated up to 5V / 2.4A, subject to the charger’s 100W total output power and 20A maximum total output current.

The total available output is shared among the connected devices according to the overall load. Actual charging current may vary depending on the connected device, cable, charging protocol and total system load.

---

20-Port USB Charging Station

The PHONIX 20-port USB charging station provides 20 USB-A charging ports in one compact desktop unit, making it practical for locations where many USB-powered devices need to be charged at the same time.

Instead of using multiple individual USB power adapters, the multi-port design allows multiple devices to be connected to one centralized charging unit.

The 100W total output capacity provides sufficient power for a wide range of USB-powered devices, while the 20-port configuration helps keep multiple-device charging areas more organized.  When 20 ports are used at the same time, 100W will be output according to different battery demand, but per port max voltage 5V, Max current 2.4A.

---

Universal 100–240VAC Input

The charger accepts a wide 100–240VAC input voltage range with a 50–60Hz input frequency, allowing it to be used in different AC power environments.

This universal AC input design is suitable for international applications and OEM projects requiring a multi-port USB charging solution for different markets.

---

20 USB-A Charging Ports

The unit is equipped with 20 USB-A output ports, providing high port density in a relatively compact desktop enclosure.

Each port supports an output rating of up to:

5V / 2.4A

The total output capacity of the charger is:

100W / 20A maximum

This makes the product suitable for centralized charging of multiple USB-powered devices.

---

Compact Desktop Design

The charger uses a compact ABS enclosure with dimensions of approximately:

160 × 87 × 75 mm

The desktop installation design allows the unit to be placed on a desk, counter, workbench, service area or other convenient charging location.

The enclosure is designed to provide practical access to all 20 USB charging ports while keeping the overall footprint relatively compact.

---

OEM and ODM USB Charger Manufacturer

PHONIX provides OEM and ODM manufacturing services for customers requiring customised multi-port USB chargers and USB charging stations.

Depending on project requirements, available customisation can include:

• Number of USB charging ports
• USB-A port configuration
• Output voltage and current specifications
• Total output power
• Enclosure design
• Product dimensions
• Enclosure material
• Customer logo and branding
• Product labels
• Rating labels
• Packaging design
• Product colour
• Cable and AC input configuration
• Electrical and mechanical specifications

For larger OEM projects, PHONIX can work with customers to develop the product according to specific electrical, mechanical and branding requirements.

---

Applications

The PHONIX 20-Port 100W USB Charger can be used in a variety of multi-device charging environments, including:

• USB charging stations
• Office charging areas
• Retail environments
• Commercial charging stations
• Service centres
• Workshops
• Schools and training facilities
• Hotels and hospitality environments
• Public or shared charging areas
• Electronic device service locations
• Multi-device charging applications

It is particularly suitable for applications where multiple USB-powered devices need to be charged from a centralized power source.

---

Packaging

Item	Specification
Selling Unit	1 piece
Product Dimensions	160 × 87 × 75 mm
Net Weight	Approx. 475 g
Packaging Dimensions	200 × 90 × 80 mm
Gross Weight per Packaged Unit	Approx. 585 g
Quantity per Carton	20 pcs
Carton Dimensions	480 × 280 × 300 mm
Gross Carton Weight	Approx. 12.5 kg

---

Why Choose PHONIX

PHONIX Technology provides OEM and ODM charger manufacturing for customers requiring customised power and charging solutions.

For multi-port USB charging projects, PHONIX can support customers from product specification and electrical design through to enclosure, branding, packaging and production.

OEM / ODM services are available for customised USB chargers and multi-port charging stations.

---
