Technical Product Specification  |  PHONIX TECHNOLOGY CO., LTD

Document status: Customer-facing draft • Revision A • 14 October 2026



1. Product Overview

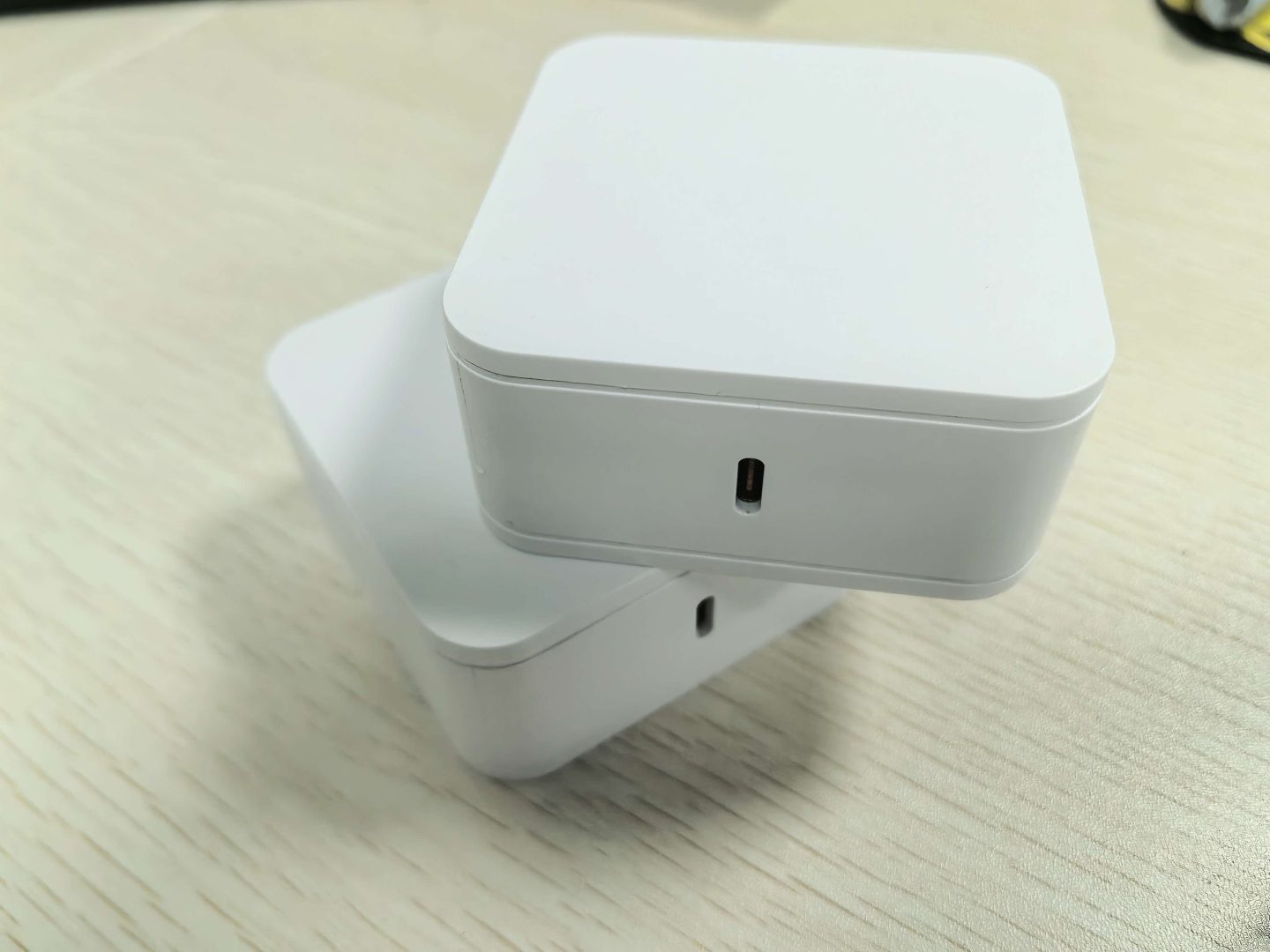

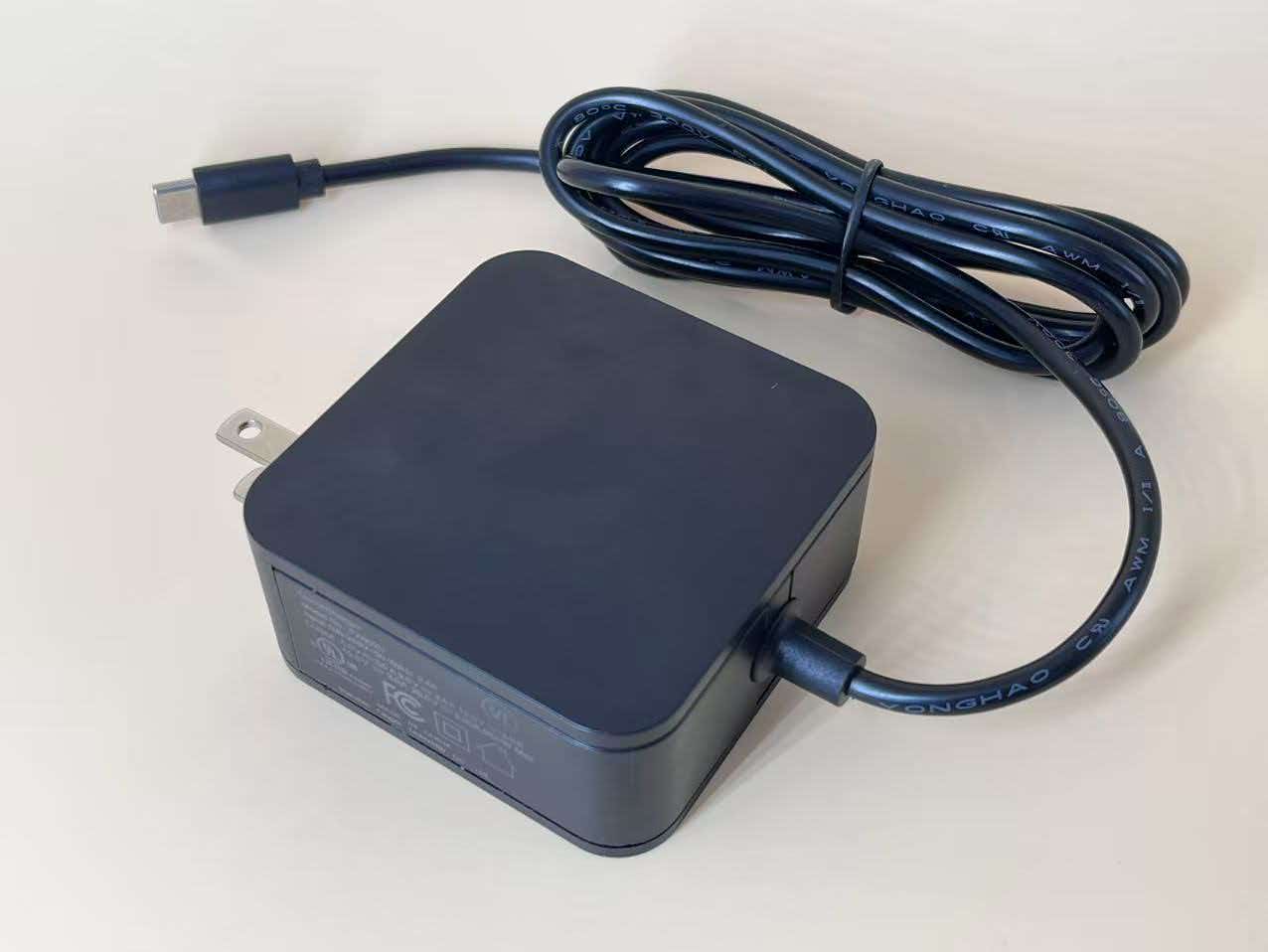

A compact 60W AC/DC fast-charging power adapter with one USB Type-C output, designed for compatible USB-C laptops and other USB-C powered equipment. USB-C Power Delivery 3.0 by PD 3.0 protocol is specified in the supplied reference. The final supported charging profiles and protocol interoperability require engineering confirmation.



2. General Specifications

Product name	60W Single-Port USB Type-C Fast Charger
Brand / supplier	PHONIX / Phonix Technology Co., Ltd
Product category	External AC/DC power adapter
Rated maximum output power	60W

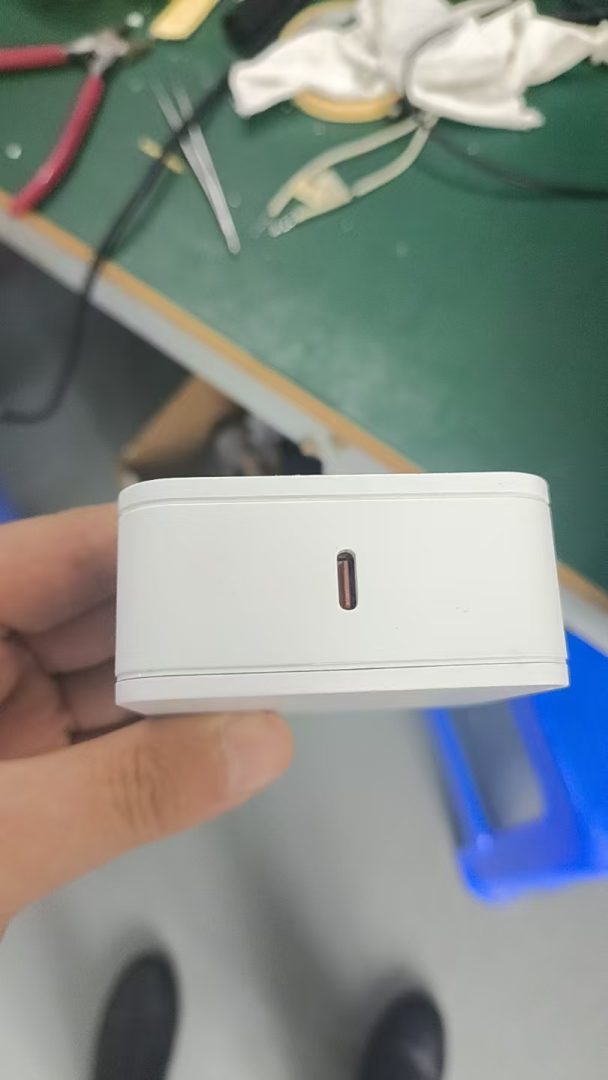

Output interface	1 × USB Type-C only; no separate DC barrel output
Charging protocol	USB Power Delivery (PD) 3.0, per reference
Housing material	Flame-retardant PC (material grade to be confirmed)
Color	Black / Black (choiceable)
Intended applications	Compatible USB-C laptops and other USB-C PD-powered devices



3. Electrical Specifications

Rated AC input	100–240 V AC, 50/60 Hz
Rated input current	1.5 A (per supplied reference; confirm on rating label)

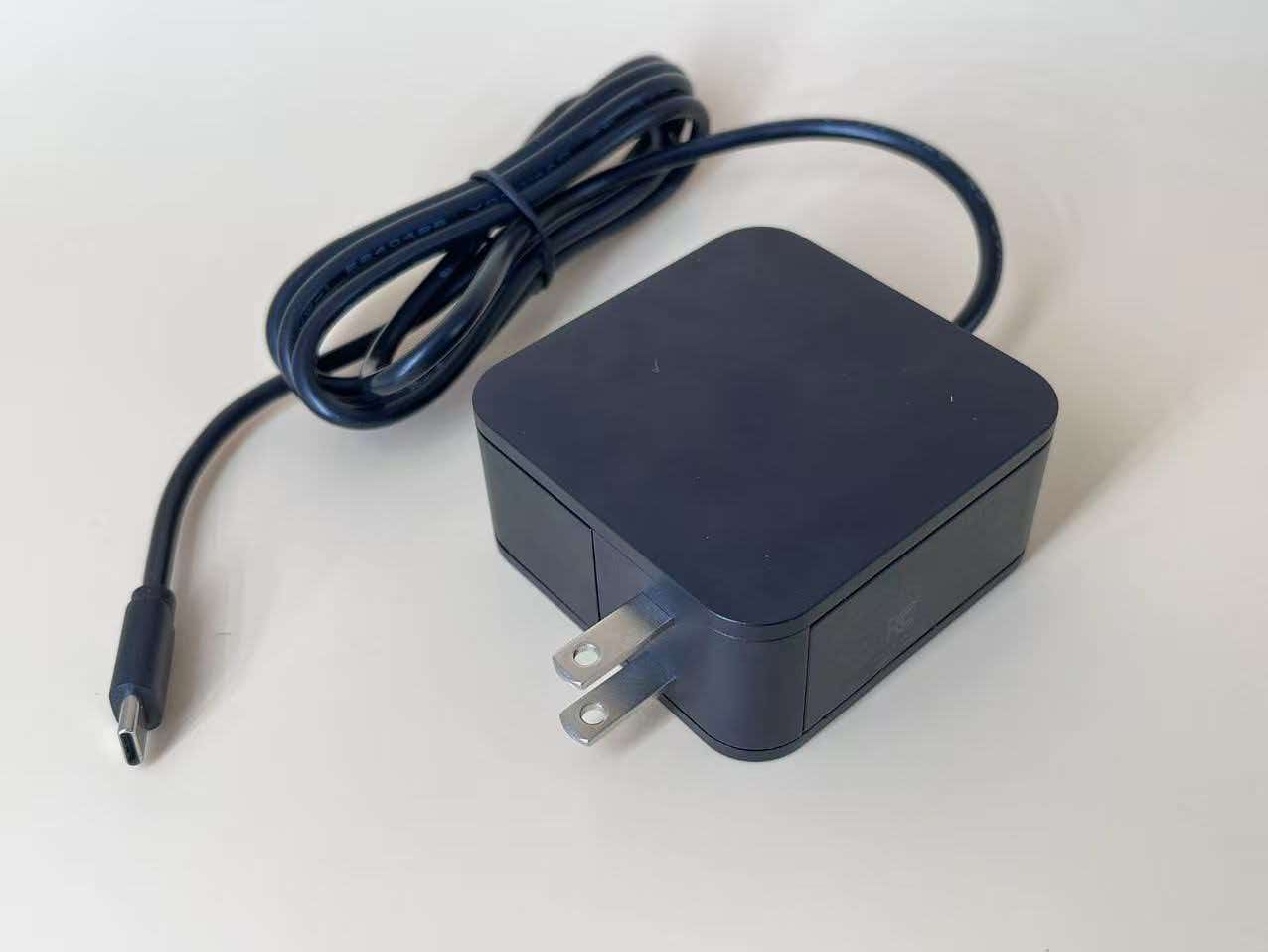

Output port	Single USB Type-C receptacle or captive USB-C cable: mechanical implementation to be confirmed
Maximum rated output	20 V DC ⎓ 3.25 A (60W)
Other fixed PDOs / PPS	Not stated in reference; engineering confirmation required
Efficiency / no-load consumption	To be confirmed by validated test report
Ripple / noise / line and load regulation	To be confirmed by validated test report
Output connector / cable rating	Must be compatible with the finalized 60W USB PD implementation; cable arrangement to be confirmed



Power rating: 20 V × 3.25 A = 60W. The reference also lists 20 V / 2.25 A in a separate field; this conflicting lower rating has not been adopted.

4. Safety and Regulatory Compliance

Safety standard	IEC 62368-1 / UL 62368-1, applicable edition and scope to be verified against certificates
Certifications / conformity claimed by customer	UL, CE and FCC
Additional marks listed in source	RoHS and UKCA (verify current applicability and supporting documentation)
Documentation to supply on request	UL certificate/listing details, applicable safety test report, EU Declaration of Conformity, EMC/FCC evidence and relevant RoHS documentation

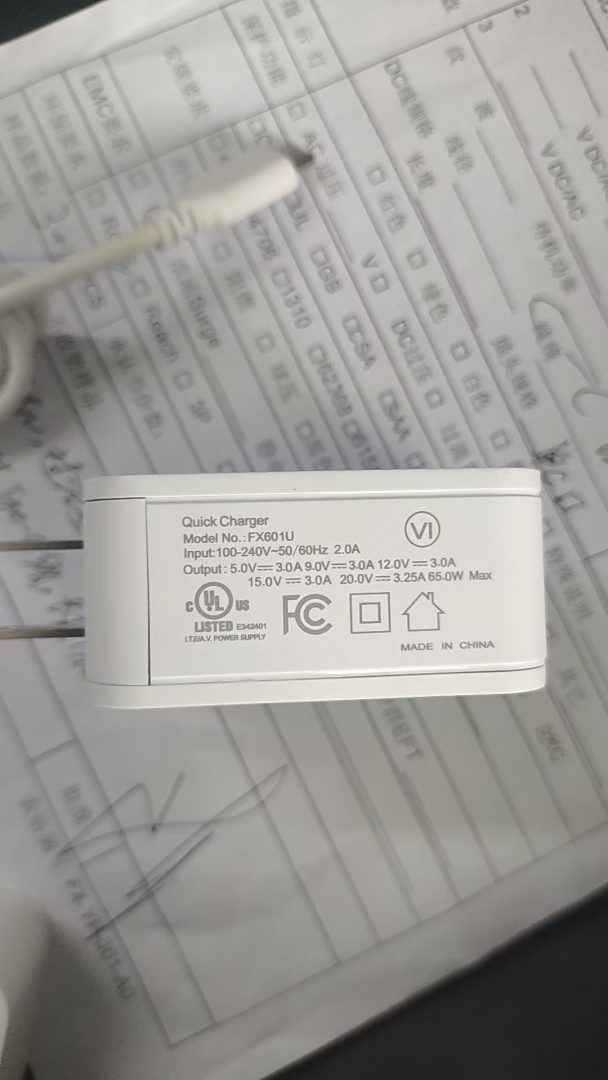

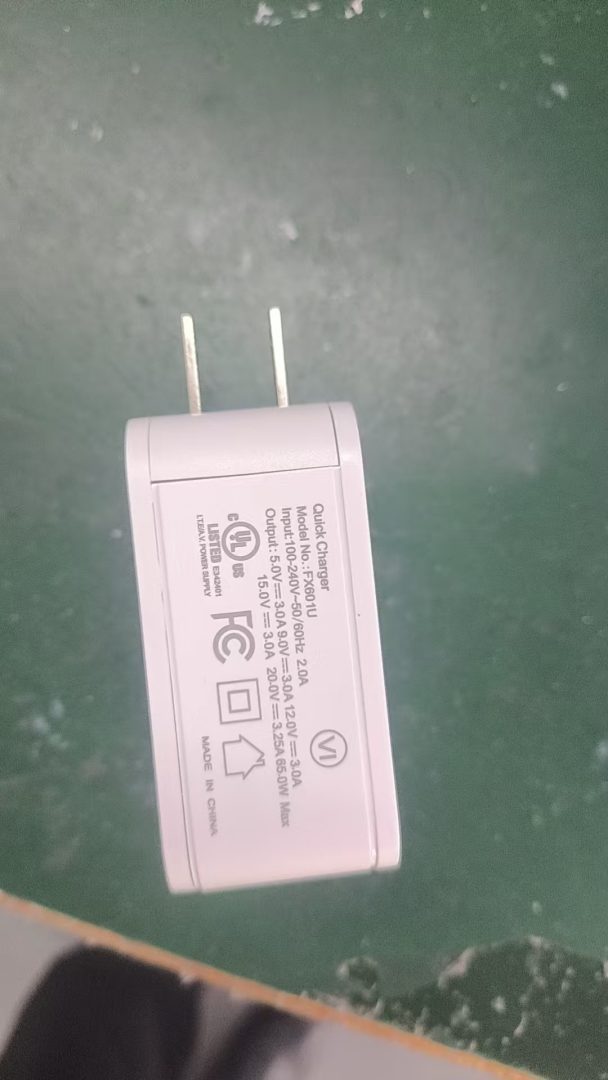

Labeling	Final rating label and regulatory markings to match verified approvals and destination market



Compliance note: UL, CE and FCC are different types of regulatory approval/conformity; their precise status, covered model number, edition and certificate/report identifiers must be verified before publication or printing on the product.

5. Protection and Reliability

Charging protection	Overcharging protection stated in the reference
Additional electrical protection	Overcurrent, overvoltage, short-circuit and overtemperature protections: confirm with design/test documentation
Operating / storage conditions	Not specified in reference; to be confirmed
Warranty	2 years (per reference)



6. Mechanical, Plug and Packaging

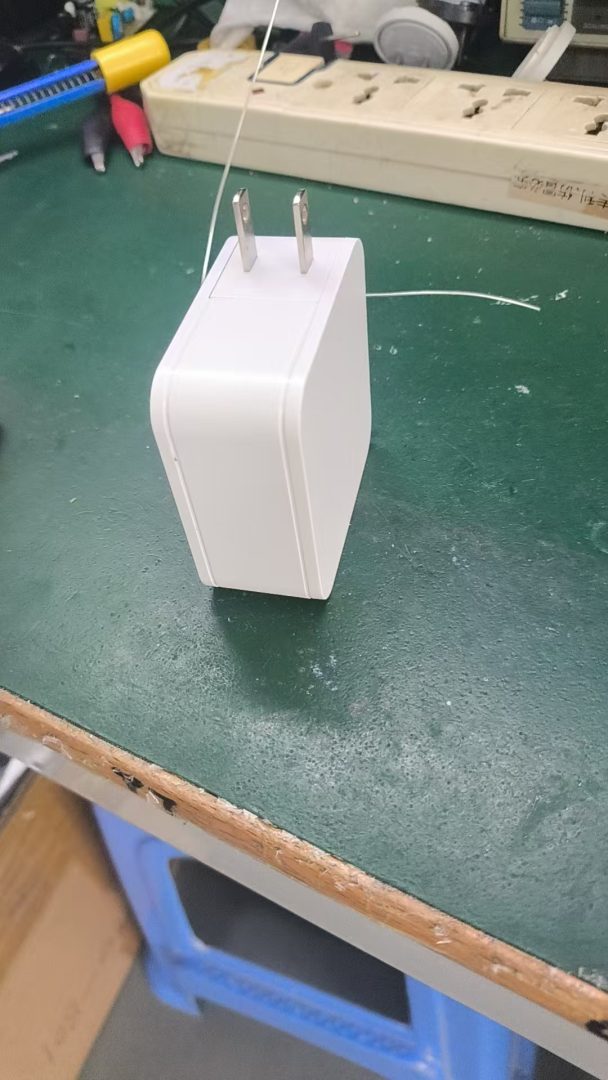

AC plug options	UK / AU / EU options listed in reference; confirm regional SKU and plug design
Output connector	USB Type-C only; 4.0 × 1.7 mm DC barrel specification removed
Enclosure dimensions / net weight	Not provided; to be confirmed
Reference individual package	15 × 10 × 5 cm
Reference single-item gross weight	0.230 kg
Packaging details	Final artwork, manual, carton quantity and cable inclusion to be confirmed



7. Ordering / Engineering Confirmation

Before release, confirm: exact model number; USB-C receptacle versus attached cable; complete PD PDO/PPS table; AC plug variants; safety and EMC certificate numbers; product dimensions; material flammability grade; protection thresholds; environmental ratings; and final labeling.

8. Manufacturer Contact

PHONIX TECHNOLOGY CO., LTD
Website: https://phonixcharger.com
Email: [email protected]
WhatsApp: +86-135 3039 5151

Specifications may be updated following final engineering verification. No unverified test values are represented as certified performance.
