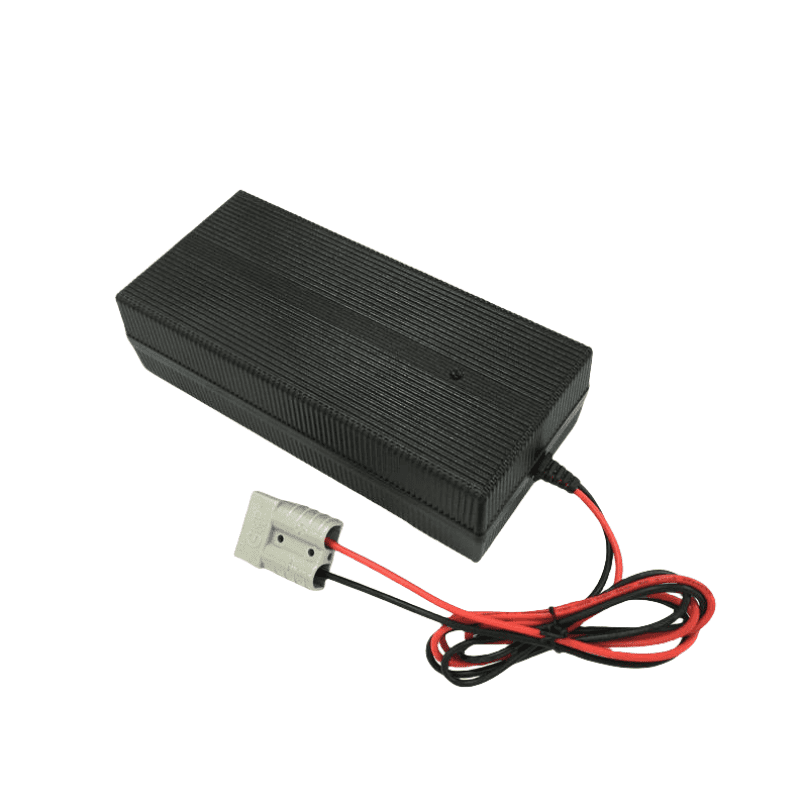

40V 9A LiFePO₄ Battery Charger for 11S 35.2V LFP Packs
Reliable 40V 9A charger designed for 11S 35.2V LiFePO₄ battery packs. Supports intelligent charging (CC/CV), high efficiency, and complete safety protections.
✅ Features
Features:
-
Output: 40V 9A, suitable for 11S 35.2V LiFePO₄ battery packs
-
Charging mode: Pre-charge, CC, CV, Auto cut-off
-
Safety protections: OVP, OCP, SCP, reverse polarity protection
-
LED indicators: Dual-color charging status display
-
Certifications: CE, UL, FCC, PSE, CCC
-
Warranty: 3 years, OEM/ODM customization supported
Description
40V 9A LiFePO₄ Battery Charger Specification
Brand: Phonix®
Model: FX36010000LFP
AC Input: 100~240V
DC Output: 40V 9A
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted, Reversed
Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 233*108*64mm
Net Weight: 1900g
Adaptor for: 11S 35.2V LiFePO₄ Battery
Customized Charger: Acceptable
FX36010000LFP 40V 9A LiFePO₄Battery Charger for 11S 35.2V LFP Packs |
||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 100~240 Vac, 50/60 Hz | |
| Input voltage range | 100~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 404W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | ||
| Output voltage range | DC35.2V~ 40V | |
| Charging current | 9A ±10% | |
| Charging voltage | DC 40V±0.2 V | |
| Pre-charge | 0.9A ± 10% | Voltage≤22V
(battery discharge voltage) |
| Charge-end current | ≤1.8A±10% | |
| Suit with battery type | 11S 35.2V LiFePO₄ Battery | |
| Timer | – | |
| Max output power | 360W | |
| Ripple voltage | ≤360mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥89% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +50% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +55% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Net Weight | 1900g | |
| Size | 233*108*64mm | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
