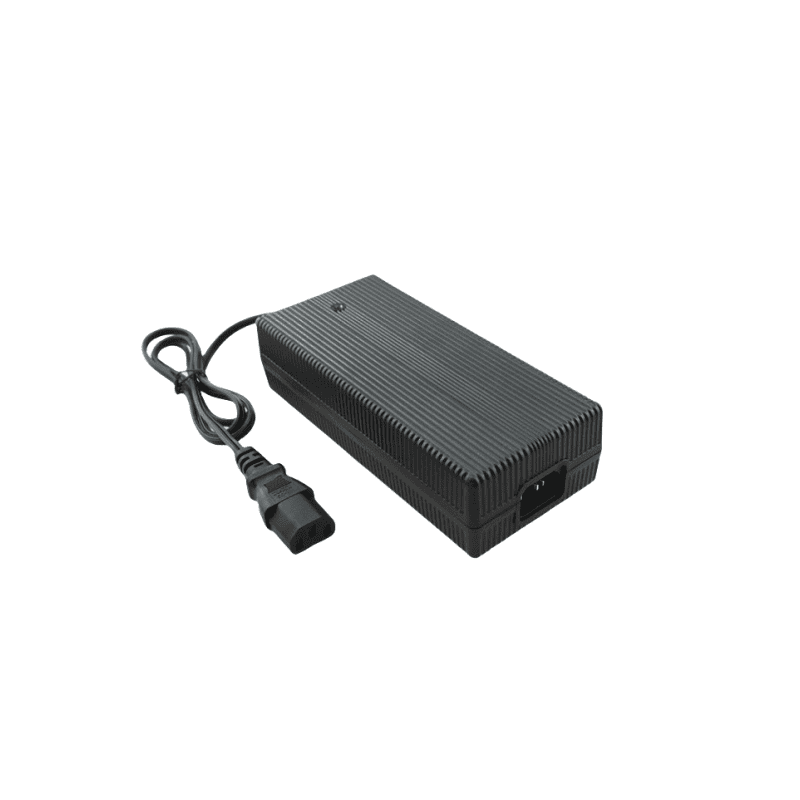

43.8V 8A Lead-acid Battery Charger for 36V Battery Packs
High-performance 43.8V 8A lead-acid battery charger for 36V SLA/AGM/GEL batteries. Delivers fast, safe charging with float mode to extend battery life.
Features
• Designed for 36V SLA, AGM, GEL lead-acid battery packs (charging voltage 43.8V)
• Intelligent 3-stage charging: Constant Current (CC), Constant Voltage (CV), Float Charge
• Supports high-current fast charging while maintaining battery safety
• Built-in protections: Over-voltage (OVP), Over-current (OCP), Short-circuit (SCP), Reverse polarity
• High efficiency with excellent heat dissipation for continuous use
• CE, UL, FCC, RCM, SAA, RoHS certified
• OEM/ODM customization available
• 3-year warranty for guaranteed quality
• Suitable for high-capacity electric bikes, mobility scooters, UPS systems, emergency lighting, and solar power storage
Description
43.8V 8A Lead-acid Battery Charger for 36V Battery Packs Specification
Brand: Phonix®
Model: FX4388000
AC Input: 100~240V
DC Output: 43.8V 8A
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted, Reversed
Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 233*108*64mm
Net Weight: 1850g
Adaptor for: 36V Lead Acid Battery Battery, SLA battery, Sealed Lead Acid battery, and Pb-acid/AGM/GEL/VRLA/WET battery
Customized Charger: Acceptable
FX4388000 43.8V 8A Lead-acid Battery Charger for 36V Battery Packs | ||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 100~240 Vac, 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 393W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | DC 43.8V | |
| Output voltage range | DC36V ~ 43.8V | |
| Charging current | 8A ±10% | |
| Charging voltage | DC 43.8V ±0.2 V | |
| Pre-charge | 0.8A ± 10% | Voltage≤32.4V |
| Charge-end current | ≤1.6A±10% | |
| Suit with battery type | 3S 36V Lead-acid Battery | |
| Timer | – | |
| Max output power | 350W | |
| Ripple voltage | ≤400mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥88% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Net Weight | 1850g | |
| Size | 233*108*64mm | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
