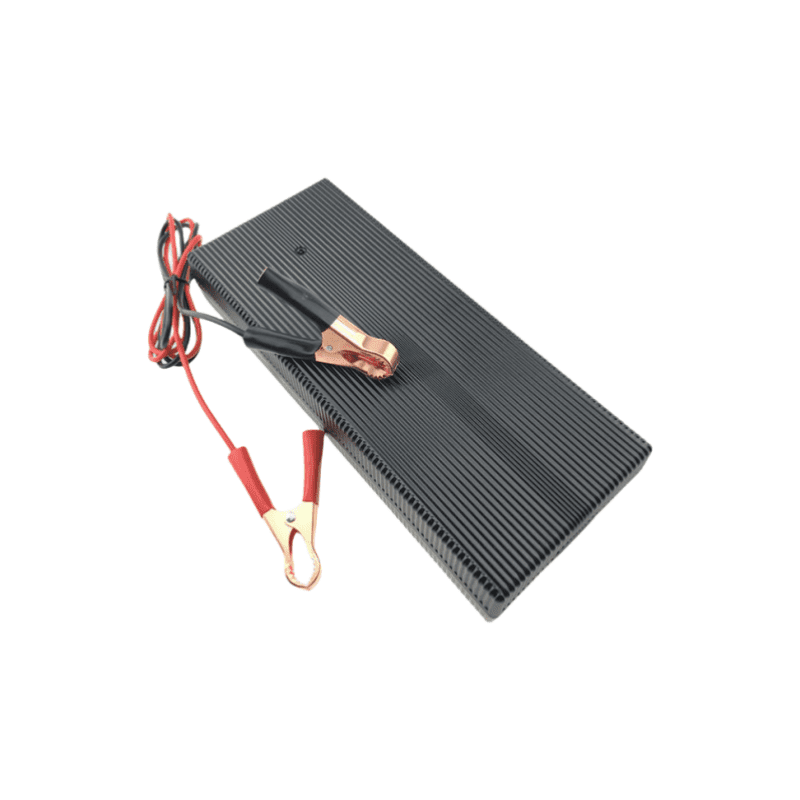

14.4V 15A Lead-acid Battery Charger for 12V Battery Packs
High-reliability 14.4V 15A lead-acid battery charger for 12V SLA/AGM/GEL batteries. Provides safe, efficient charging with automatic float mode for long-term standby applications.
Features
• Designed for 12V SLA, AGM, GEL lead-acid battery packs (charging voltage 14.4V)
• Intelligent 3-stage charging: Constant Current (CC), Constant Voltage (CV), Float Charge
• Maintains battery health and prevents overcharging during standby use
• Built-in protections: Over-voltage (OVP), Over-current (OCP), Short-circuit (SCP), Reverse polarity
• High efficiency and excellent heat dissipation
• CE, UL, FCC, RoHS certified
• OEM/ODM customization available
• 3-year warranty for guaranteed quality
• Suitable for UPS systems, emergency lighting, mobility scooters, security equipment, and solar power storage
Description
14.4V 15A Lead-acid Battery Charger Specification
Brand: Phonix®
Model: FX14415000
AC Input: 150~240V
DC Output: 14.4V 15A
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted, Reversed
Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 233*108*64mm
Net Weight: 1900g
Adaptor for: 12V Lead Acid Battery Battery, SLA battery, Sealed Lead Acid battery, and Pb-acid/AGM/GEL/VRLA/WET battery
Customized Charger: Acceptable
FX14415000 14.4V 15A Lead-acid Battery Charger for 12V SLA/AGM/GEL Battery Packs | ||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 150~240 Vac, 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 240W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | DC 14.4V | |
| Output voltage range | DC12V ~ 14.4V | |
| Charging current | 15A ±15% | |
| Charging voltage | DC 14.4V ±0.2 V | |
| Pre-charge | 1.5A ± 0.4A | Voltage≤10.8V |
| Charge-end current | ≤3A±15% | |
| Suit with battery type | 1S 12V Lead-acid Battery | |
| Timer | – | |
| Max output power | 219W | |
| Ripple voltage | ≤150mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥89% | Full load @215V |
| 3.Environment | ||
| Operate temperature | -15 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Net Weight | 1900g | |
| Size | 233*108*64mm | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
