Description

12V and 24V Battery Chargers for Industrial Applications

Phonix offers a range of 12V and 24V battery chargers with 5A, 10A and 20A charging current options. The series is available with ventilated housing for improved heat dissipation or enclosed housing for enhanced physical protection. These chargers are designed for reliable charging and standby maintenance of lead-acid battery systems used in generators, industrial equipment, emergency power systems, telecommunications equipment and other stationary power applications.

12V Battery Chargers

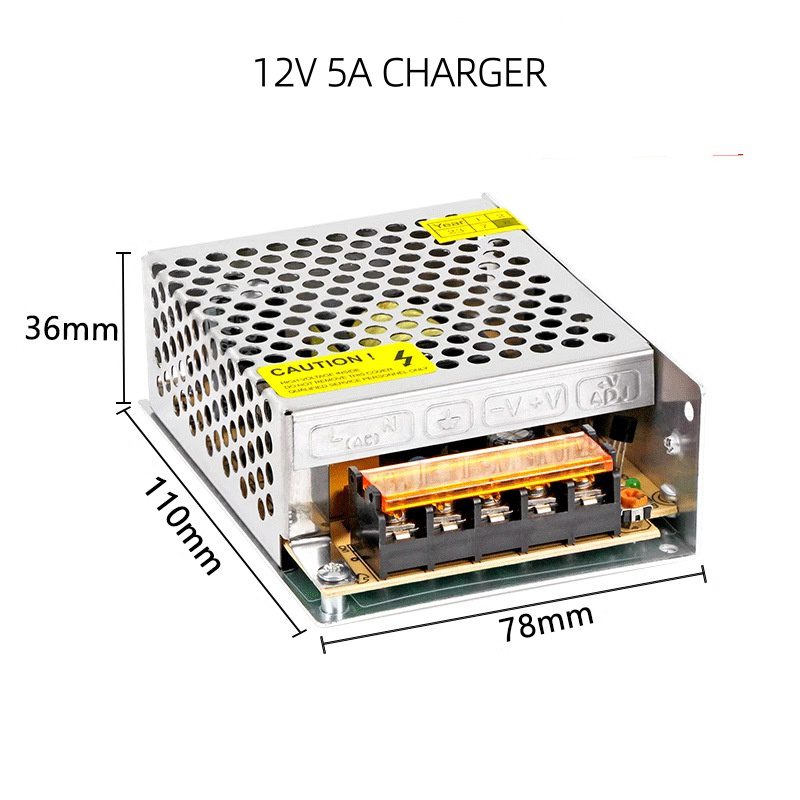

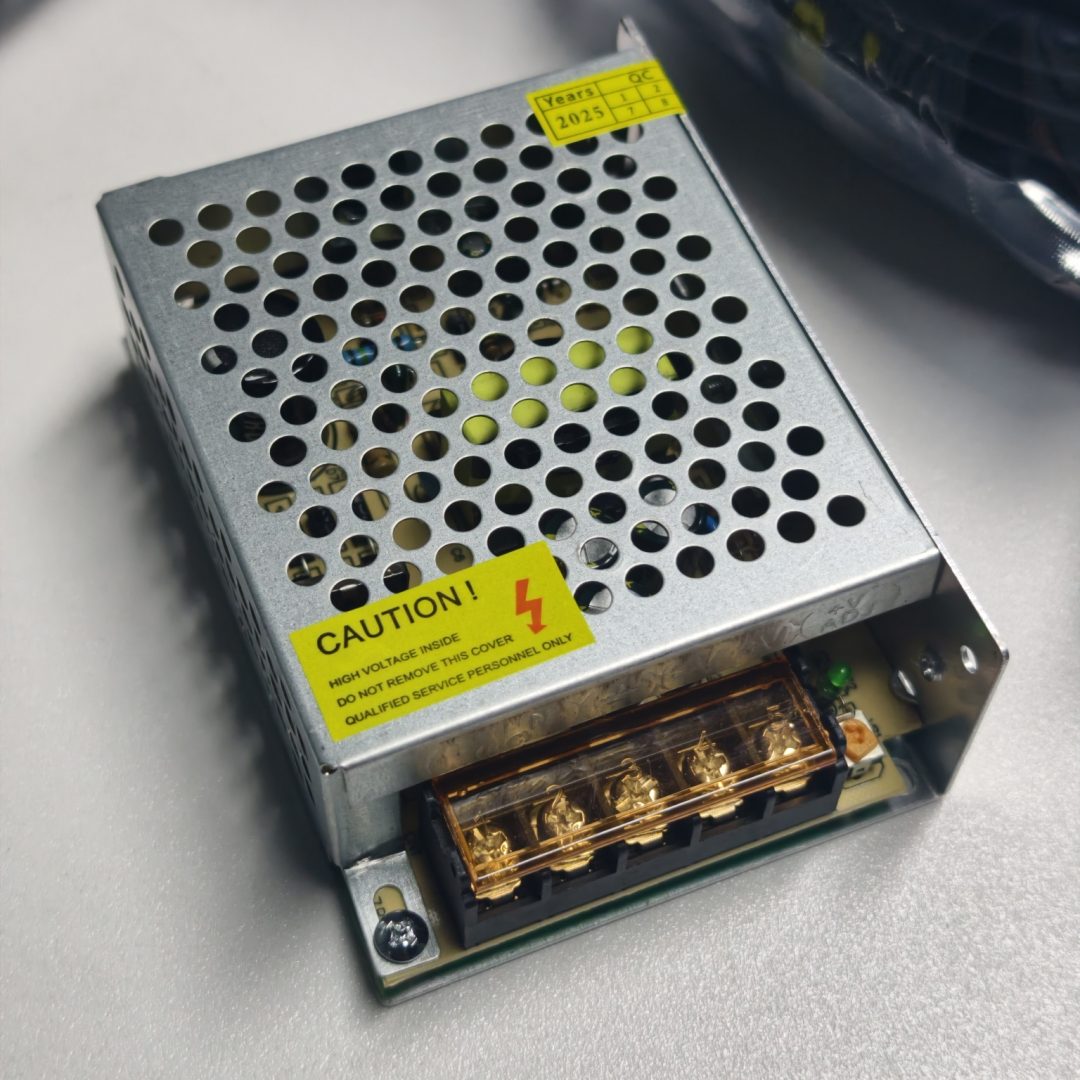

12V 5A Battery Charger

Designed for 12V lead-acid battery systems requiring a moderate charging current. Suitable for generator starting batteries, standby power equipment, control panels and other stationary applications.

KEY  FEATURES
Output Voltage	12V (Adjustable)
Charging Current	5A
Input	90 – 250 VAC ( Upgrade up 305V)
Charging Mode	CC / CV / Float
Efficiency	81% @ 110VAC; 86% @ 230VAC ;
Application	Industrial / Standy Power System / Generator Sets

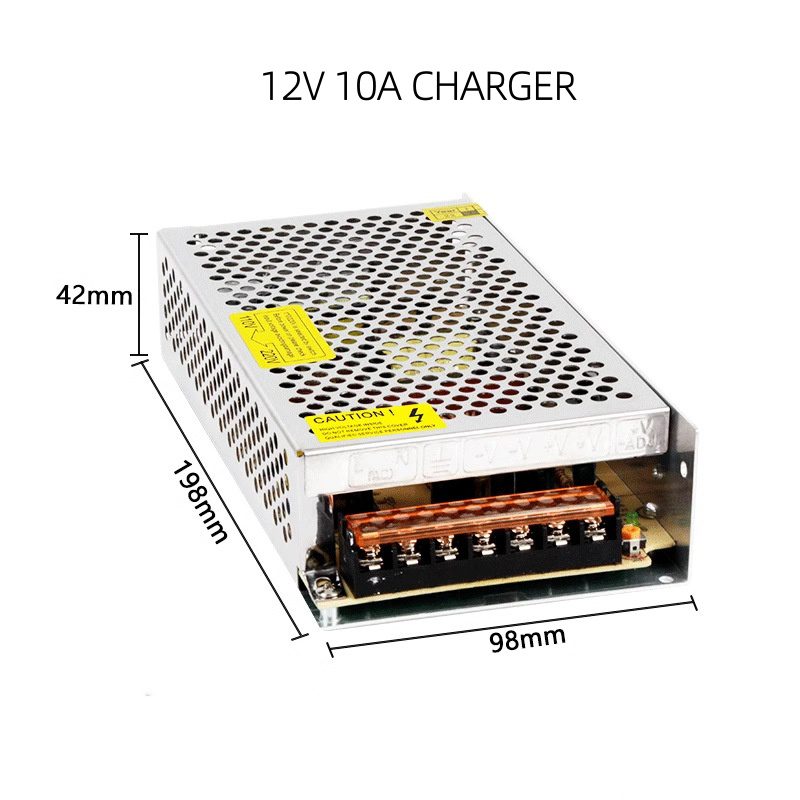

12V 10A Battery Charger

A higher-current 12V charger for industrial battery systems requiring faster battery charging and reliable standby maintenance. Suitable for diesel generators, industrial control equipment, emergency power systems and telecommunications applications.

KEY  FEATURES
Output Voltage	12V (Adjustable)
Charging Current	10A
Input	90 – 250 VAC ( Upgrade up 305V)
Charging Mode	CC / CV / Float
Efficiency	80% @ 110VAC; 84% @ 230VAC ;
Application	Industrial / Standy Power System / Generator Sets

12V 20A Battery Charger

A high-current 12V battery charger designed for larger lead-acid battery systems and applications requiring higher charging capacity. Suitable for industrial generators, heavy-duty equipment, standby power systems and other demanding stationary applications.



---

24V Battery Chargers

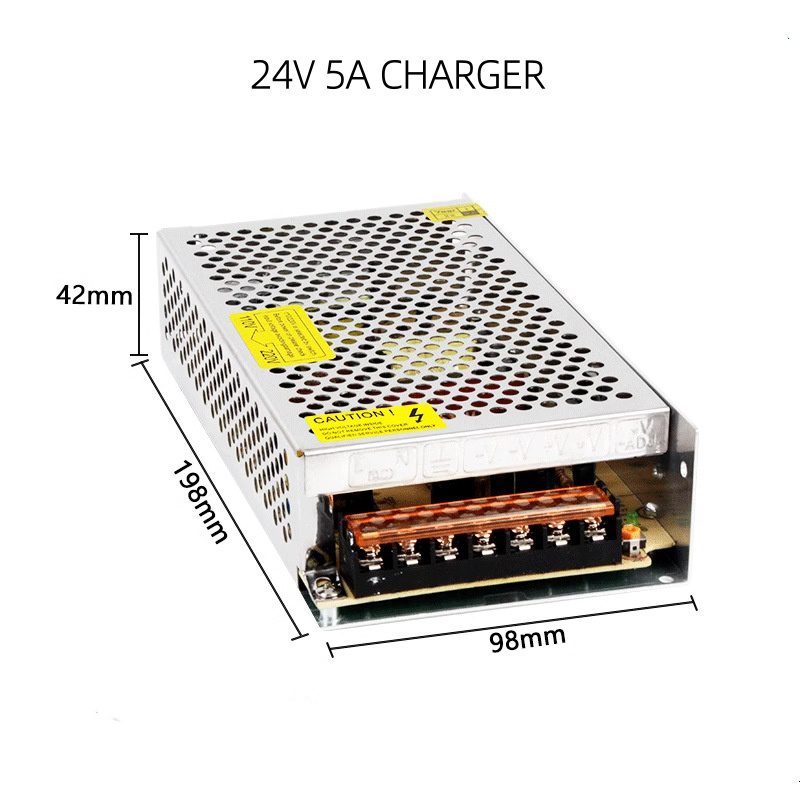

24V 5A Battery Charger

Designed for 24V lead-acid battery systems used in generator control systems, industrial equipment, standby power applications and other stationary DC power systems.

KEY  FEATURES
Output Voltage	24V (Adjustable)
Charging Current	5A
Input	90 – 250 VAC ( Upgrade up 305V)
Charging Mode	CC / CV / Float
Efficiency	81% @ 110VAC; 86% @ 230VAC ;
Application	Industrial / Standy Power System / Generator Sets

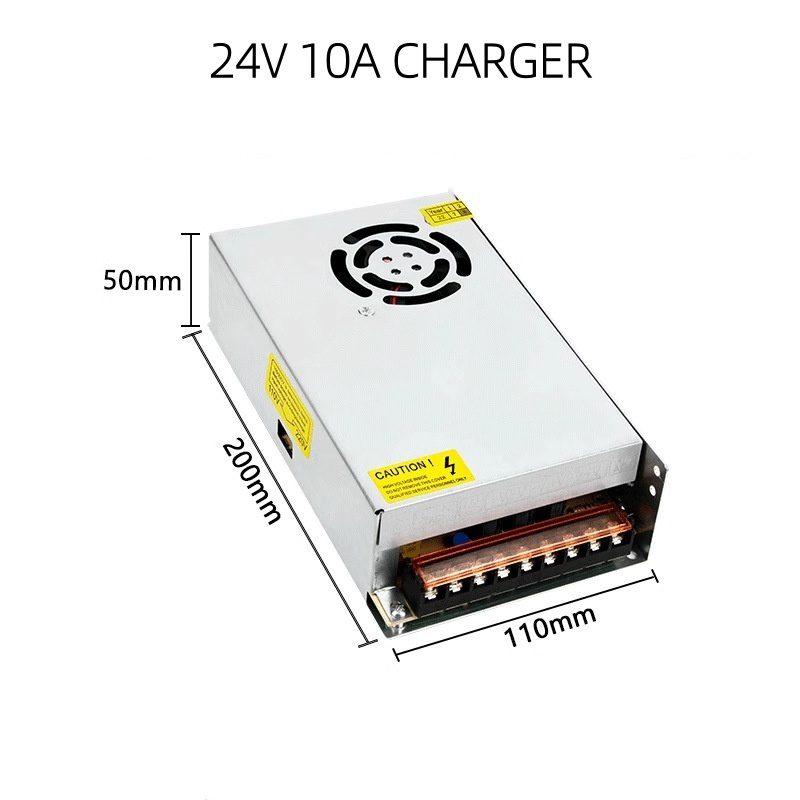

24V 10A Battery Charger

A versatile 24V battery charger for industrial and generator applications where reliable charging and standby battery maintenance are required.

KEY  FEATURES
Output Voltage	24V (Adjustable)
Charging Current	10A
Input	90 – 250 VAC ( Upgrade up 305V)
Charging Mode	CC / CV / Float
Efficiency	81% @ 110VAC; 85% @ 230VAC ;
Application	Industrial / Standy Power System / Generator Sets

24V 20A Battery Charger

A high-current 24V battery charger for larger battery banks and demanding industrial applications, including generator starting systems, heavy-duty equipment and standby power installations.

---

Housing Options

Ventilated Housing Battery Chargers

Ventilated housing models are designed to promote natural airflow around the charger and improve heat dissipation during continuous operation. They are suitable for applications where ventilation and thermal management are important, including generator control panels, industrial equipment and stationary power systems.

ventilated battery charger, ventilated housing battery charger, battery charger with ventilated housing, battery charger for continuous operation

---

Enclosed Housing Battery Chargers

Enclosed housing models provide a more protected physical structure for applications where the charger requires additional protection from accidental contact, mechanical impact or the surrounding installation environment. They are suitable for industrial equipment, generator systems, standby power installations and other enclosed electrical systems.
