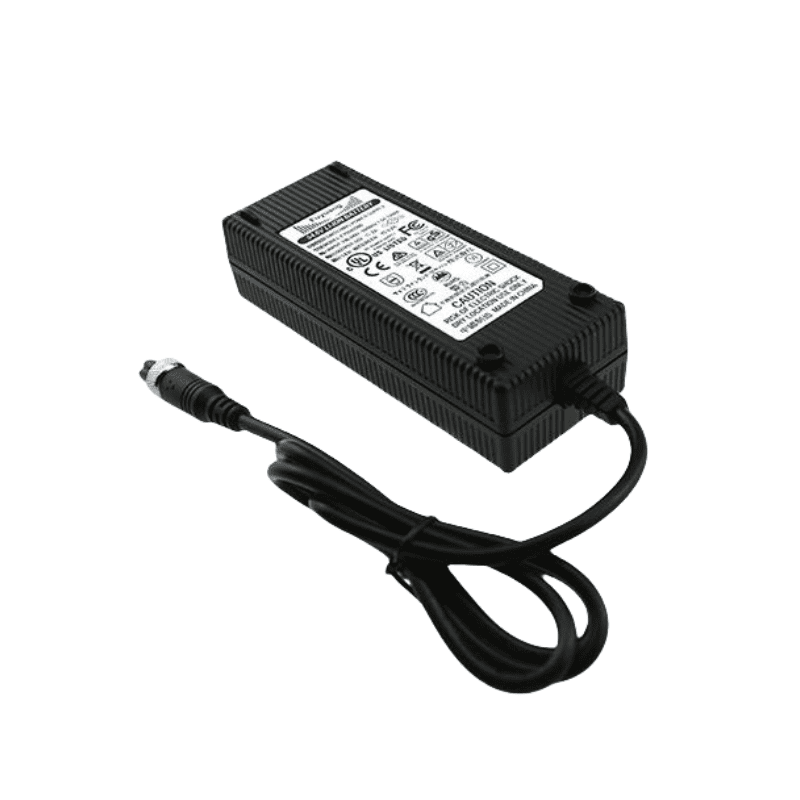

65.7V 1.5A LiFePO₄ Battery Charger for 18S 57.6V Battery Packs
High-quality 65.7V 1.5A LiFePO₄ battery charger designed for 18S (57.6V nominal) packs. Compact and lightweight, intelligent CC/CV charging with multiple protections ensures safe and reliable performance.
Features
Input: 100~240V AC
Output: 65.7V 1.5A DC
Compatible with 18S LiFePO₄ (57.6V nominal) battery packs
Intelligent CC/CV charging, Auto Cut-off
LED indicator for charging status
Protections: Over Voltage, Over Current, Short Circuit, Reverse Polarity
Compact and lightweight design
Suitable for LED lighting, e-bikes, scooters, security systems, handheld tools, and energy storage systems
Fully automated production line, consistent quality, low price
3-year warranty
OEM/ODM service available
Описание
65.7V 1.5A LiFePO₄ Battery Charger Specification
Brand: Phonix®
Model: FX6571500LFP
AC Input: 100~65.7V
DC Output: 65.7V 1.5A
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted, Reversed
Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 154*60*36mm
Net Weight: 450g
Adaptor for: 18S 57.6V LiFePO₄ Battery
Customized Charger: Acceptable
FX6571500LFP 65.7V 1.5A LiFePO₄ Battery Charger for 18S 57.6V Battery Packs | ||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 100~240 Vac, 50/60 Hz | |
| Input voltage range | 100~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 112W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | ||
| Output voltage range | DC57.6V~ 65.7V | |
| Charging current | 1.5A ±10% | |
| Charging voltage | DC 65.7V±0.2 V | |
| Pre-charge | 0.15A ± 10% | Voltage≤36V (battery discharge voltage) |
| Charge-end current | ≤0.3A±10% | |
| Suit with battery type | 18S 57.6V LiFePO₄ Battery | |
| Timer | — | |
| Max output power | 99W | |
| Ripple voltage | ≤660mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥89% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +50% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +55% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Net Weight | 450g | |
| Size | 154*60*36mm | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
