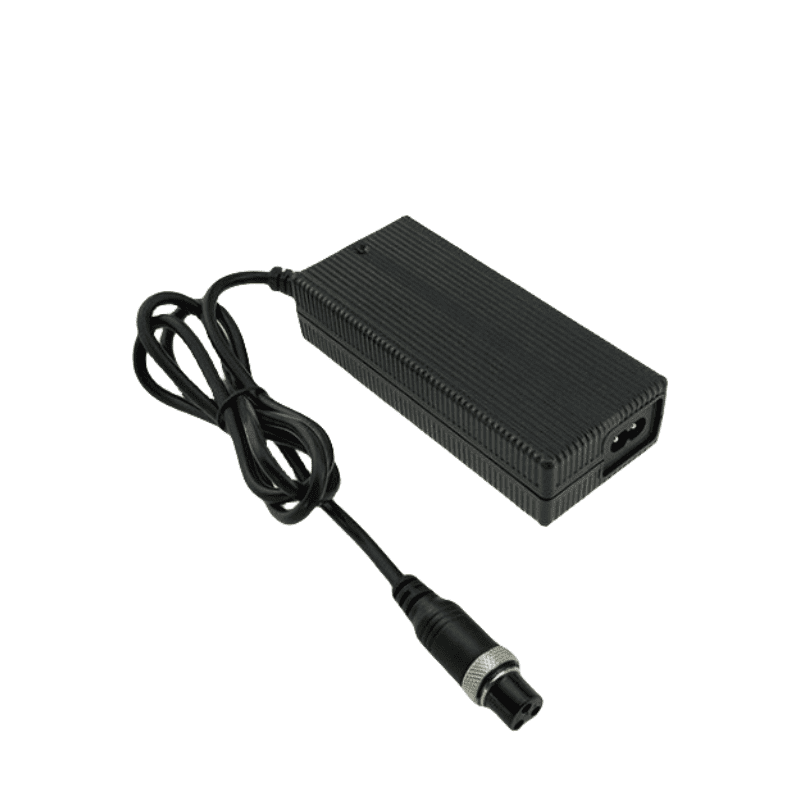

4.2V 5A Li-ion Battery Charger for 3.7V Li-ion Battery
Features:
- Fast and efficient charging: 5A big current;
- Full safety protections: Over temperature, over hot, over voltage, over current;
- Global certifications: UL, CE, FCC, ETL, PSE, SAA, C-TICK, RCM;
- Plugs: Multiple international plug options;
- Warranty: By a 3-year warranty;
- OEM/ODM customization: Available;
- Adapt for: the Li-ion battery, Lipo battery, Portable electronics, toys battery, and LED lighting,etc.
Описание
4.2V 5A Li-ion Battery Charger for 3.7V Li-ion Battery Specification
Adaptor for: 1S 3.7V Li-ion Battery
Model:FX0425000
AC Input: 100~240V
DC Output: 4.2V 5A
Application: 1S 3.7V Li-ion Battery
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted,
Reversed Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 127 x 67 x 38mm
Net Weight: 270g
Industry: Security System, Lighting Industry
Brand: Phonix®
FX0425000 4.2V5A 1S Li-ion Battery Charger | ||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 100~240Vac 50/60Hz | |
| Input voltage range | 90~264Vac | |
| Rating input current | 1.0Arms | Input:100V Output: Full load |
| Max input power | 25W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | DC4.4V | |
| Output voltage range | DC3.7V~4.2V | |
| Suit with battery type | 1S Li-ion battery | |
| Charging current | 5A ±10% | |
| Charging voltage | DC4.2V ±0.2V | |
| Pre-charge | 0.5A±0.1A | Voltage ≤2.8V Pre-charging |
| Charge-end current | ≤1A±10% | |
| Timer | — | |
| Max output power | 21W | |
| Ripple voltage | ≤42mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥85% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM/50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Weight | 270g | |
| Size | 120X67X38MM | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000H | |
| ESD | 8.0KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
