0-15V Adjustable Voltage, 0-100A Adjustable Current LiFePO₄ Smart Battery Charger
- Battery pack: 4S Max
-
Versatile Charging Solution
Our 0-15V adjustable voltage, 0-100A adjustable current charger is perfect for a variety of applications, including electric vehicles, power tools, and LED lighting. -
Customizable Design
This charger is fully customizable to meet your specific needs, ensuring compatibility with various LiFePO₄ battery types. -
Reliable Performance
Designed for efficiency, this charger offers constant current (CC), constant voltage (CV), and automatic cut-off for safe, high-performance charging. -
Long-Term Durability
With a 3-year warranty, this charger is built to last, ensuring long-term reliability and peace of mind for users in any industry. -
Widely Applicable
Whether for industrial use, residential systems, or personal electric vehicles, our LiFePO₄ charger provides the flexibility you need. -
Enhanced Safety Features
Equipped with multiple protection features such as over-voltage, over-current, short-circuit, and reverse polarity, this charger guarantees safe operation.
Description

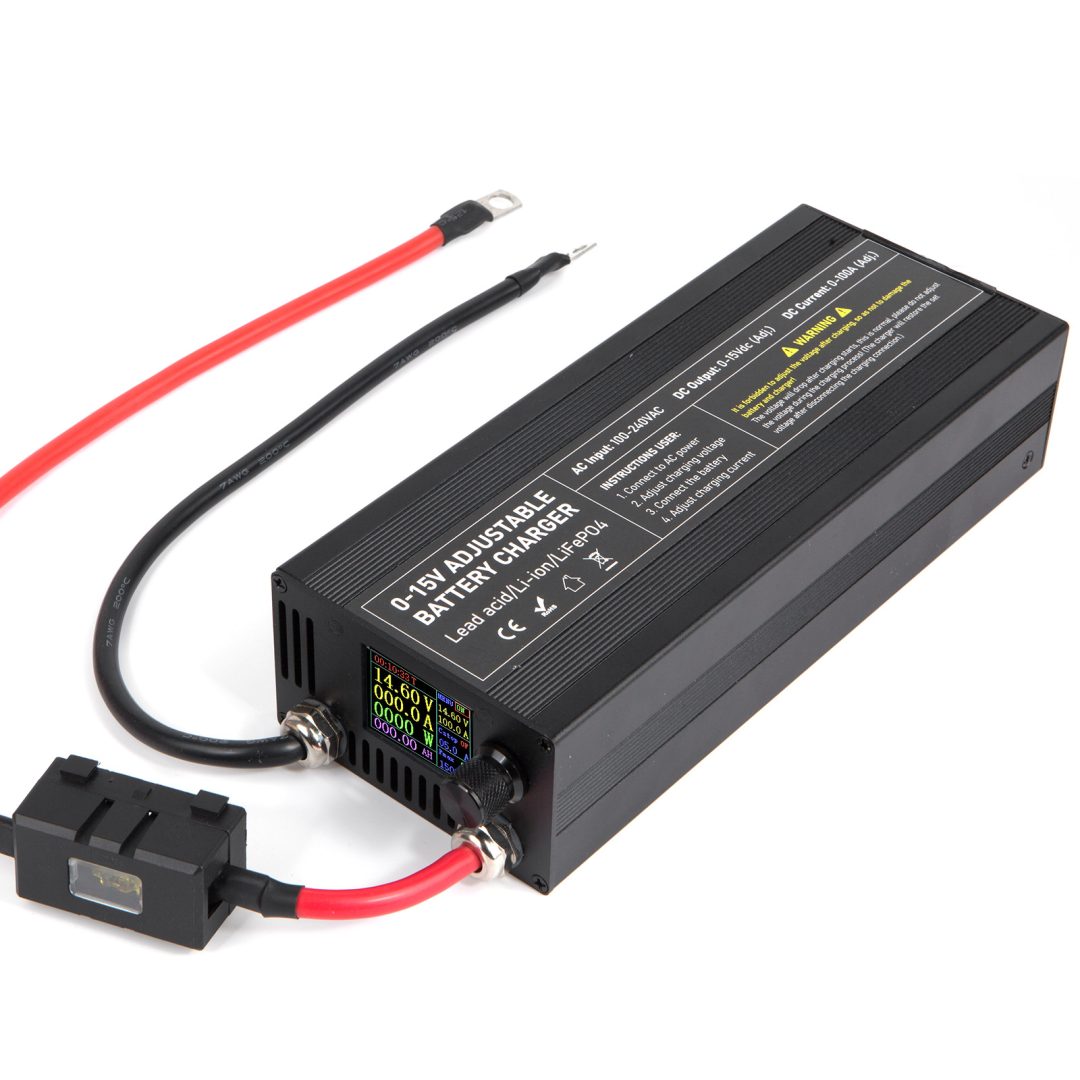

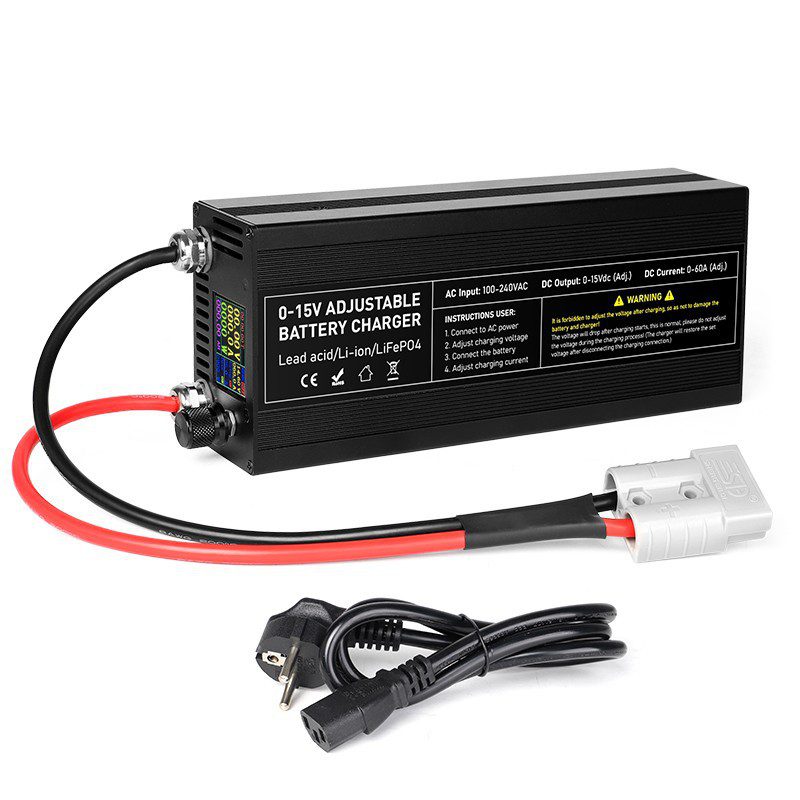

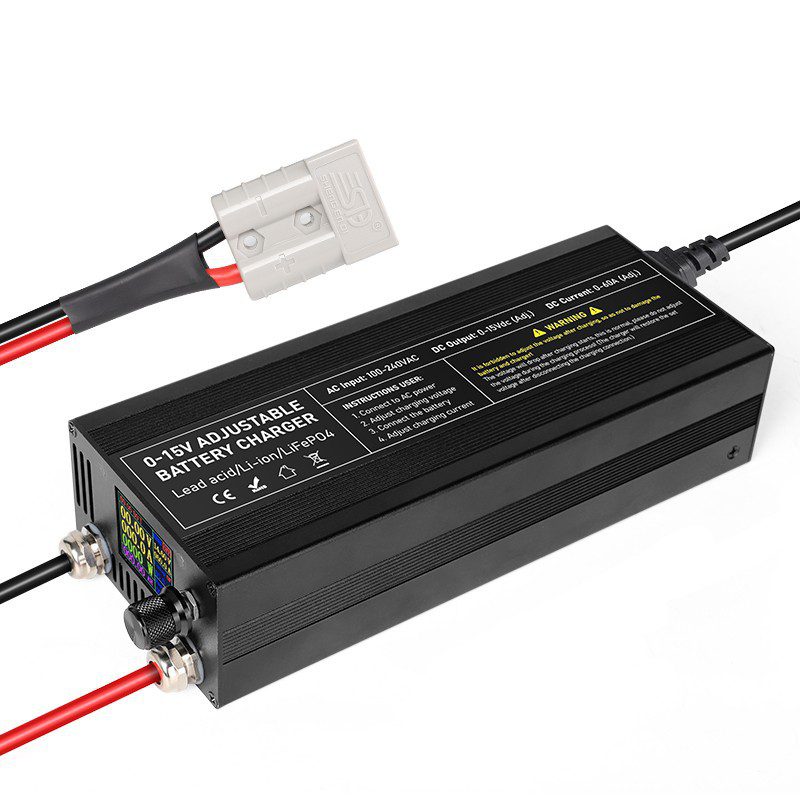

0-15V Adjustable Voltage, 0-100A Adjustable Current LiFePO₄ Battery Charger
This 0-15V Adjustable Voltage, 0-100A Adjustable Current LiFePO₄ Battery Charger is designed to provide versatile and high-performance charging for a wide range of LiFePO₄ battery packs. It is ideal for electric vehicles, power tools, and other battery-powered devices that require reliable charging solutions. Equipped with intelligent charging capabilities, this charger ensures optimal battery health and efficiency.
Features:
- Input: 100~240V AC
- Output Voltage: 0~15V DC (adjustable)
- Output Current: 0~100A DC (adjustable)
- Battery pack: 4S Max
- Charging Modes: Constant Current (CC), Constant Voltage (CV), Auto Cut-off

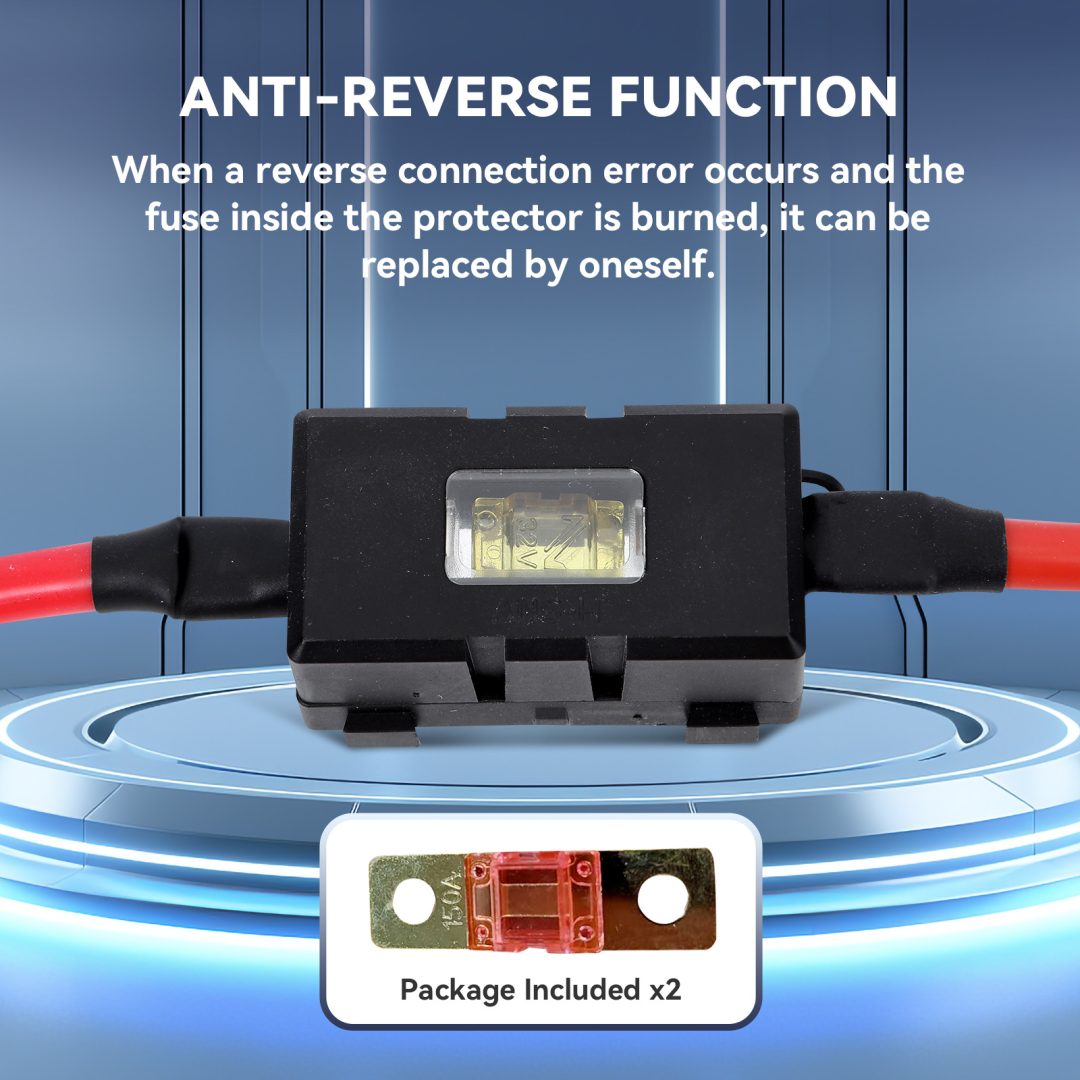

- Protections: Over-voltage Protection (OVP), Over-current Protection (OCP), Short Circuit Protection, Reverse Polarity Protection

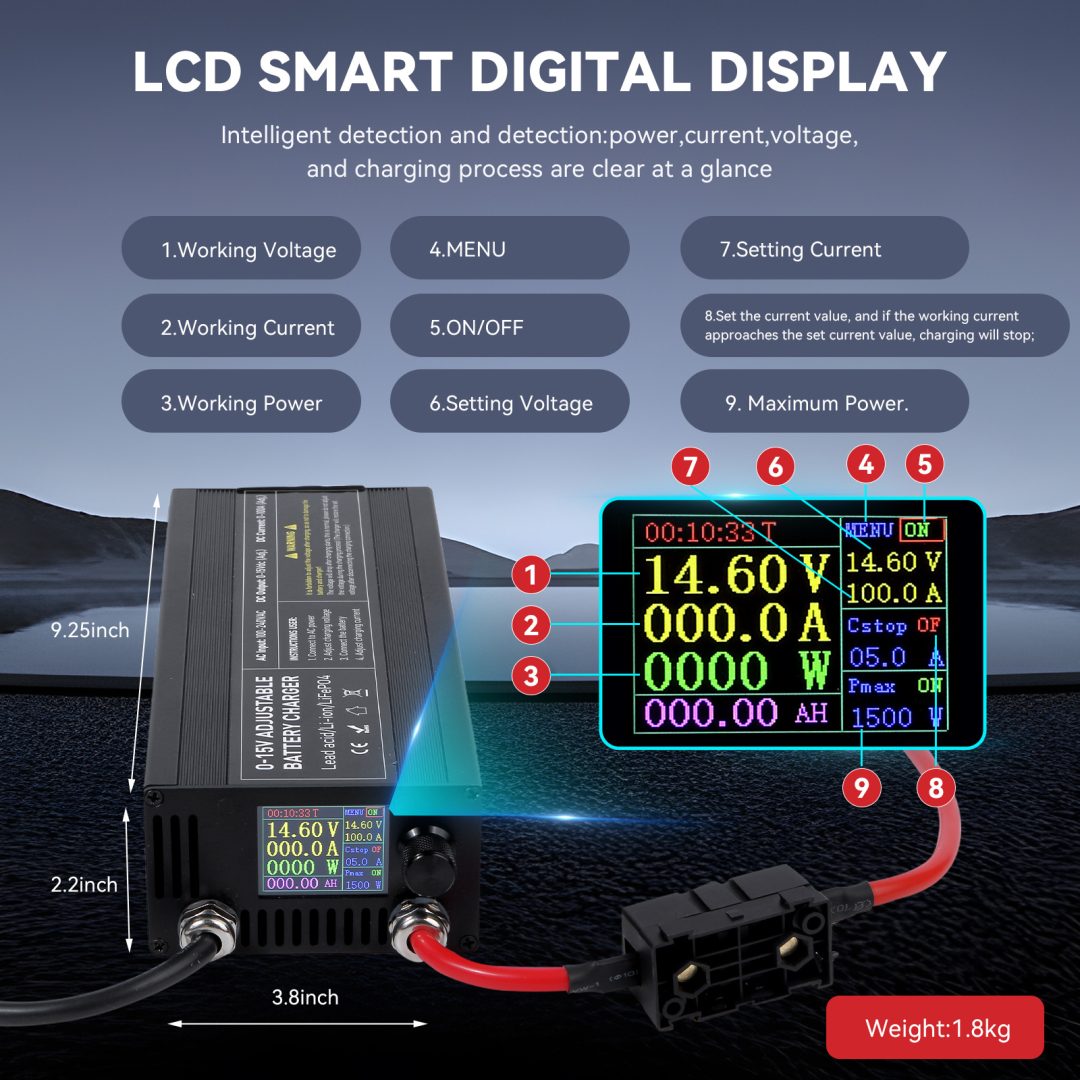

- LED Indicators: Charging status, Power on, Finished, Error
- Compact and lightweight design
- Safety approvals: CE, UL, TUV, FCC, PSE, CCC
- Warranty: 3 years
- OEM/ODM services available
- Compatible with LiFePO₄ Batteries (4S MAX 14.6V Packs)
Specifications:
| Item | Specification | Remark |
|---|---|---|
| 1. Input | ||
| Rating Input Voltage | 100~240 Vac, 50/60 Hz | |
| Input Voltage Range | 100~264 Vac | |
| Rating Input Current | 1.5 A RMS | Full load @ 100V |
| Max Input Power | 1650W | Full load @ 100V |
| 2. Output | ||
| No Load Output Voltage | 0-15V | Adjustable |
| Charging Current | 0~100A ±10% | Adjustable |
| Charging Voltage | 0~15V DC ±0.2V | Adjustable |
| Pre-Charge | 0.5A ± 10% | Voltage ≤ 30V |
| Charge-End Current | ≤1.0A ±10% | |
| Battery Compatibility | LiFePO₄ (15S 48V nominal) | |
| Timer | – | |
| Max Output Power | 1500W | |
| Ripple Voltage | ≤500mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All On (or Green On) | Finished | |
| All Flashing | Error | |
| Flashing One by One | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥92% | Full load @ 220V |
| 3. Environment | ||
| Operate Temperature | -10 ~ +50℃ | |
| Operate Humidity | < 90% Relative Humidity | |
| Storage Temperature | -40 ~ +80℃ | |
| Storage Humidity | 0 ~ +95% Relative Humidity | |
| Cooling | Natural Cooling | |
| Vibration Resistance | 5MM / 50HZ / 600s | Non-operating condition |
| Impact Resistance | 1 meter drop test 3 times | Non-operating condition |
| 4. Mechanical | ||
| Net Weight | 2200g | |
| Size | 235*97*56mm | Casing only |
| Connector | Refer to order | |
| 5. Safety | ||
| Max. Temperature Rise | < 40℃ on casing | |
| Safety Approval | CE, TUV, FCC, PSE, CCC | |
| MTBF | 40,000 H | |
| ESD Protection | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) |
Learn More About LiFePO₄ Batteries:
LiFePO₄ batteries are widely used for applications that require high safety and long cycle life. To better understand the benefits of LiFePO₄ technology, you can refer to this detailed article on
